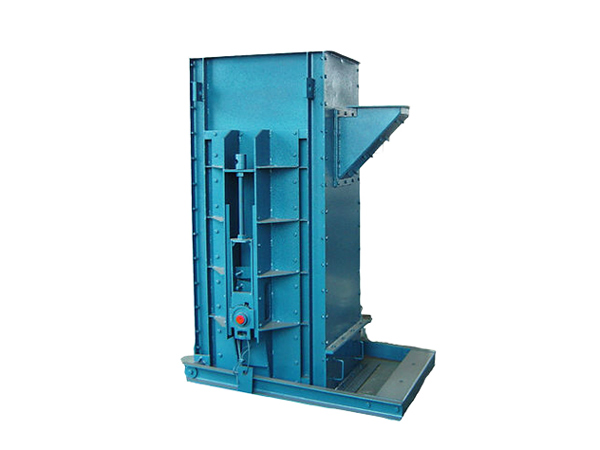

TB-NE系列板鏈?zhǔn)蕉肥教嵘龣C(jī)
TB-NE系列板鏈斗式提機是按國家有關標準設計制造，采用重力式料，以板鏈筒滾子鏈牽引件，適于輸送堆積比重不大于2t/m³，塊度分別為55、80、110mm磨琢物料，物料溫度不超過250，如塊煤、碎石、礦石石等。本機輸送量16-480m,提高度：5-40m.T
技術參數：
設備型號Equipment Model | TB-NE250 | TB-NE315 | TB-NE400 | TB-NE500 | TB-NE630 | TB-NE800 | TB-NE1000 |
料斗型號Bucket Model | J | T |
輸送量Conveying capacity | m3/h | 15-25 | 32-46 | 50-75 | 84-120 | 35-190 | 216-310 | 340-480 |
料斗Hopper | 斗寬Bucket width | mm | 250 | 315 | 400 | 500 | 630 | 800 | 1000 |
斗容Bucket capacity | L | 3 | 6 | 12 | 25 | 50 | 100 | 200 |
斗距Bucket space | mm | 200 | 250 | 320 | 400 | 500 | 630 |
鏈條315Chain | 節距Pitch | mm | 100 | 125 | 160 | 200 | 250 | 315 |
條數number |
| 1 | 2 |
單條破斷載荷（最小值）Single-breaking load | KN | 112/160 | 160/224 | 224/315 | 315/450 | 450/630 | 630/900 |
鏈輪節圓直徑Srocket Festival circle diameter | mm | 386.37 | 482.96 | 618.19 | 772.74 | 965.92 | 1217.06 |
料斗運行速度Bucket speed | m/s | 0.5 |
主軸轉速Sindle speed | rmp | 24.71 | 19.78 | 15.54 | 13.26 | 9.89 | 7.85 |
